From the Department of Emergency Medicine (Yang YJ, Chen KC, Lin IY, Choa CC, Wang TL), Shin-Kong Wu Ho-Su Memorial Hospital.

Correspondence to Dr. Tzong-Luen Wang, Department of Emergency Medicine, Shin-Kong Wu Ho-Su Memorial Hospital, 95 Wen Chang Road, Taipei, Taiwan. E-mail M002183@ms.skh.org.tw



Laryngeal mask airway (LMA) has been shown to be an alterative method of definite airway in first aid. However, the adequate methods to confirm LMA positioning remain to be elucidated. We reported our preliminary experiences of 5 cases with trauma who underwent awake application of LMA. Of them, three cases couldn’t be confirmed the positioning of LMA by physical examination. Capnogaphy demonstrated two of the patients have initial improper positioning of the LMA. Under the guidance of end-tidal CO₂ readings, these two cases could be finally well positioned the LMA. In summary, our preliminary experience demonstrated that capnography should be routinely used as the confirmatory method of LMA positioning.
Key words---Laryngeal Mask Airway; Capnography; First Aid; Emergency Medicine

Since the first infra-red CO₂ measuring and recording apparatus was introduced in 1943 by Luft, capnography has evolved into an essential component of standard anesthesia monitoring armamentarium. The primary goal of anesthesiologists is to prevent hypoxia, and capnography helps to identify situations that can lead to hypoxia if uncorrected. Moreover, it also helps in the swift differential diagnosis of hypoxia before hypoxia can lead to irreversible brain damage. Because of these advantages, the utility of capnography has been extended outside of the operating room arena, in recent times, to emergency rooms, endoscopic suites, X-ray rooms and even on-site at emergency and trauma fields. Secondary confirmation of endotracheal tubing has been developed as one of the most important applications of capnogaphy.^1-3
The laryngeal mask airway (LMA) has been well developed and has gained widespread popularity in clinical use in recent 10 years.^4,5 It allows either spontaneous or positive-pressure ventilation. With advances in the design, it has also received more attention as a tool for management of the difficult airway.^6-8 Because the placement of this device is less technique-dependent, the learning curve will be adequate.^9-13 In other words, the LMA has theoretical basis for the rescue team to learn and use under difficult situations.^13-17 However, there was still lacking in guidelines concerning confirming the adequacy of LMA positioning. We therein report our preliminary experiences of five cases that underwent LMA with secondary confirmation by capnography.

Five patients who consulting our institute due to multiple trauma and airway compromise were enrolled in this study. The protocol has been reviewed by our institute review board and informed consent was obtained. After detailed evaluation, emergency physicians decided to use LMA as the initial conduit for securing airway in the above five cases for whom awake intubation were determined.
After maintaining cervical immobilization, the patients were well pre-oxygenated. Under Sellick’s maneuver, the physicians applied carefully the LMA and then confirm tube placement immediately, assessing the first breath delivered by the bag-mask unit. As the bag is squeezed, listen over the epigastrium and observe the chest wall for movement. The moisture condensation on the inside of the connecting tube with exhalation was also observed. Secondary confirmation was determined by a pulse oximetry, a continuous capnography and chest radiographs.

The capnography we used was a commercialized product, Capnogard, from NovaMatrix Medical System Inc. (USA). It possessed a solid state mainstream sensor using single beam, non-dispersive infrared absorption, ratiometric measurement. Capnogram could be obtained within 15 sec., and full specifications within 60 sec. It could be applied to any adult and pediatric airway size, including LMA tubing. The accuracy was ±2 mmHg for 0-40 mmHg, ±5% of reading for 41-70 mmHg, ±8% of reading for 71 - 100 mmHg.
When used with the standard technique of listening to breath sounds, CO₂ monitoring is probably the best way to detect esophageal intubation. Although CO₂ may be present in the stomach it is rapidly flushed out during ventilation of the stomach and the end tidal CO2 reading would decrease, resulting in a flat capnogram. Recently, the end tidal CO2 detectors, which change color on exposure to 4% CO₂, have been used successfully to confirm tracheal intubation. These detectors can be used where CO₂ monitors are not available. It should be noted that in the presence of carbonated beverages in the stomach a PETCO₂ as high as 38 mmHg can be observed with esophageal ventilation and it may take at least six breaths for the end tidal CO₂ to decrease to zero. However, the CO₂ waveforms produced as a result are abnormal in shape and, therefore, could be detected earlier by capnography than capnometry.

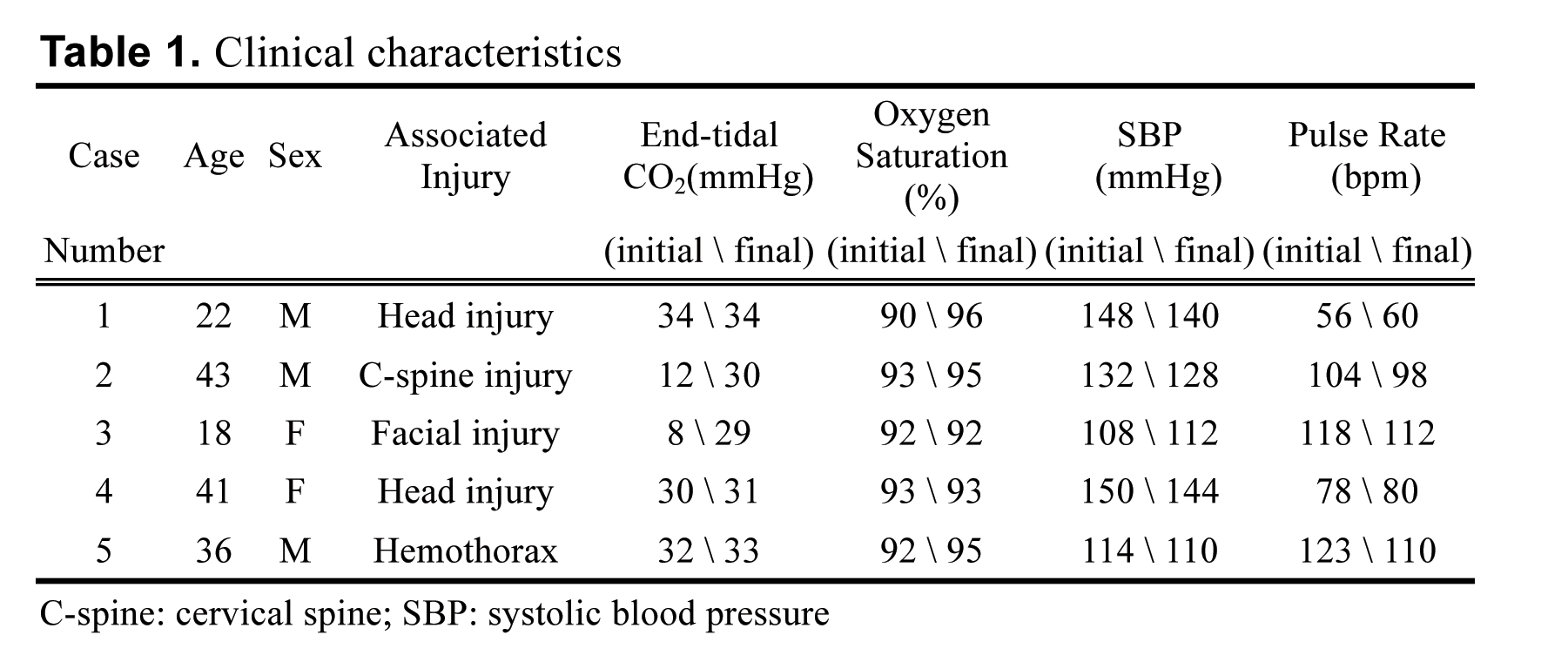

Table 1 depicts the clinical characteristics of five patients enrolled in this survey. Of them, three cases (case 2, case 3, and case 5) couldn’t be confirmed the positioning of LMA by primary method (or physical examination). The uncertainty was due to audible breathing sound and epigastric bubbling. Continuous end-tidal CO₂ readings provided by near infra-red capnography revealed that two of the three cases (case 2 and case 3) did not have proper positioning of the LMA. Under guidance of the end-tidal CO₂ readings, the LMA was adjusted to a most adequate position. Chest radiographs demonstrated proper positioning of the LMA in all of these five cases.
Of the two cases with initial improper LMA positioning, the initial end-tidal CO₂ reading was 12 mmHg and 8 mmHg, respectively. Pulse oximetry demonstrated 93% and 92%. After repositioning, the end-tidal CO₂ readings increased to 30 mmHg and 29 mmHg, whereas oxygen saturation was 95% and 92%. Concomitant hemodynamic measurements were also depicted in Table 1. There were no definite hemodynamic changes for these five cases during the procedure.

It has been well established the LMA and the Combitube dual-lumen tube are both time-saving procedure for maintaining patent airways in emergency situations.^12,13,18-20 However, in one study comparing the LMA and the Combitube for inexperienced operators, the rate of successful LMA placements in anesthesized and paralyzed patients was 100%, but the success rate only 92% with a Combitube.13 More complicated procedures may contribute to the failure of the Combitube. In addition, the Combitube cannot be used in patients with a protective reflex or in pediatric victims, whereas the LMA has no such limitations.²¹ In our previous study,²² the rescue team and DMAT learned application of LMA easily and successfully. Evidence from some preliminary studies revealed that the application of the LMA is not affected by the patient position,²³ past experience,^10-12consciousness level,^4-7 or cervical immobilization.^24-26 These characteristics make the LMA more attractive in rescue of victims in first aid.
The most important issue in intubating the patients is to confirm proper positioning of the tubing in the airway. A variety of electronic and mechanical devices are available for use both in-hospital ad outside the hospital. These devices range from simple and inexpensive to complex and costly and include several models of end-tidal CO₂ detectors and several types of esophageal detector devices. The American Heart Association International Guidelines 2000 Conference addressed this topic in detail to determine whether evidence now supports secondary confirmation devices as a required adjunct. Although no device or adjunct can substitute for proper visualization of the tracheal tube passing through the vocal cords, the devices for secondary confirmation still played an important role in difficult situations such as trauma.²⁷
The quantitative end-tidal CO₂ detectors are widely accepted as the best, albeit most expensive, secondary confirmation device. A capnometer provides a single quantitative readout of the concentration of CO₂ at a single point in time, whereas the capnograph provides a continuous display of the level of CO₂ as it varies throughout the ventilation cycle. These monitors can confirm successful tracheal tube placement within seconds of an intubation attempt. Patient deterioration associated with declining clinical status or subsequent tracheal tube dislodgement can also be detected with these devices. Dislodgement is an adverse event that is alarmingly common during out-of-hospital transportation of a patient.^28-32
In our report, five patients underwent awake application of LMA. Of them, three couldn’t be confirmed the proper positioning by physical examination. It may have double meanings; the first is that there is a difficulty of primary confirmation of LMA positioning by physical examination because the device always covers both the airway (or glottic opening) and partially the esophagus. This hypothesis should be examined by radiographs or fluoroscopy. Capnogaphy is therefore to be recommended as routine or primary confirmation of LMA positioning. The second is that awake intubation itself may be a risk factor for dislodgement of LMA because of the patients still have intact gag reflex and may move anyway although cervical immobilization has been applied. The observation is especially important when the patients were applied LMA during transportation.
In summary, our preliminary experience demonstrated that capnography should be routinely used as the confirmatory method of LMA positioning.

Hicks I, Soni N, Shephard J. Comparison of end-tidal and arterial carbon dioxide measurements during anaesthesia with laryngeal mask airway. Br J Anaesth 1993;71:734-5

Spahr-Schopfer IA, Bissoonnette B, Hartley EJ. Capnometry and the pediatric laryngeal mask airway. Can J Anaesth 1993;40:1038-43

Chhibber AK, Kolano JW, Roberts WA. Relationship between end-tidal and arterial carbon dioxide with laryngeal mask airways and endotracheal tubes in children. Anesth Analg 1996;82:247-50

Brain AIJ. The laryngeal mask airway: a possible new resolution to airway problems in the emergency situation. Arch Emerg Med 1984;1:229-32

Brain AIJ. Historical aspects and future directions. In: Ferson DZ, Brimacombe JR, Brain AIJ, eds. International airway clinics: the Laryngeal Mask Airway. New York, Lincott-Williams and Wilkins Co. 1998;36:1-18

Caplan R, Benumof JL, Berry FA, et al. Practice guidelines for management of the difficult airway: A report by the ASA Task Force on management of the difficult airway. Anesthesiology 1993;78:597-602

Benumof J. Laryngeal mask airway and the ASA difficult airway algorithm. Anesthesiology 1996;84:686-99

Airway and Ventilation Management Working Group of the European Resuscitation Council. Guidelines for the advanced management of the airway and ventilation during resuscitation. Resuscitation 1996;31:201-30

Brimacombe JR, Berry AM, Daves SM. The laryngeal mask airway. In: Hanowell LH, Waldron RJ, eds. Airway management. Philadelphia, PA: Lippincott-Raven Publishers; 1996:195-211

Kokkinis K. The use of the Laryngeal Mask Airway in CPR. Resuscitation 1994;27:9-12

Samarkandi AH, Seraj MA, El Dawlatly A, Mastan M, Bakhamees HB. The role of the Laryngeal Mask Airway in cardiopulmonary resuscitation. Resuscitation 1994;28:103-6

Davis PRF, Tighe SQM, Greenslade GL, et al. Laryngeal mask airway and endotracheal tube insertion by unskilled personnel. Lancet 1990;336:977-9

Yardy N, Hancox D, Strang TA. A comparison of two airway aids for emergency use by unskilled personnel: the Combitube and laryngeal mask. Anaesthesia 1999;54:181-3

Grantham H, Phillips G, Gilligan JE. The laryngeal mask in pre-hospital emergency care. Emerg Med 1994;6:193-7

Berry AM, Brimacombe JR, Verghese C. The laryngeal mask airway in emergency medicine, neonatal resuscitation, and intensive care medicine. Anesthesiol Clin 1998;36:91-109

Brimacombe J. Emergency airway management in rural practice: use of the laryngeal mask airway. Aust J Rural Health 1995;3:10-19

Brimacombe J, Berry A, White A. An algorithm for use of the laryngeal mask airway during failed intubation in the patient with a full stomach. Anesth Analg 1993;79:144-63

Bailey AR, Endotracheal tube DA. The laryngeal mask airway in resuscitation. Resuscitation 1994;28:107-10

Nolan JP, Parr MJA. Aspects of resuscitation in trauma. Br J Anaesth 1997;79:226-40

Wang TL. Role of laryngeal mask airway in emergency medicine. J Emerg Crit Care Med 2002;13:47-56

Asai T, Morris S. The laryngeal mask airway: its features, effects and role. Can J Anaesth 1994;41:930-60

Wang TL, Chen KC, Teng HJ, Chang H. Role of laryngeal mask airway in first aids in confined space. Ann Disaster Med 2003;2:85-96

MaCaughey W, Bhanumurthy S. Laryngeal mask placement in the prone position. Anesthesia 1993;48:1104-5

Brimacombe JR, Berry A. Laryngeal mask insertion: a comparison of the standard versus neutral position in normal patients with a view to its use in cervical spine instability. Anaesthesia 1993;48:670-1

Pennant JH, Pace NA, Gajraj NM. Role of the Laryngeal Mask Airway in the immobile cervical spine. J Clin Anesth 1993;5:226-30

Grantham H, Phillips G, Gilligan JE. The laryngeal mask in pre-hospital emergency care. Emerg Med 1994;6:193-7

American Heart Association. Chapter 3. The advanced ACLS skills. In: ACLS provider manual. 2001

Bhavani Shankar K, Moseley H, Kumar AY, Delph Y. Capnometry and Anaesthesia. Canadian J Anaesth 1992;39:6:617-32

Tulou PP, Walsh PM. Measurement of alveolar carbon dioxide at maximal expiration as an estimate of arterial carbon dioxide tension in patients with airway obstruction. Am Rev Respir Dis 1970;102:921-6

Shankar KB, Moseley H, Kumar Y, Vemula V, Krishnan A. The arterial to end-tidal carbon dioxide tension difference during anesthesia for tubal ligation. Anaesthesia 1987;42.482-6

Murray IP, Modell JH. Early detection of endotracheal tube accidents by monitoring carbon dioxide concentration in respiratory gas. Anesthesiology 1983;59:344-6

Braman SS, Dunn SM, Amico CA, Millman RP. Complications of intrahospital transport of critically ill patients. Ann Internal Med 1987;107:469-73
